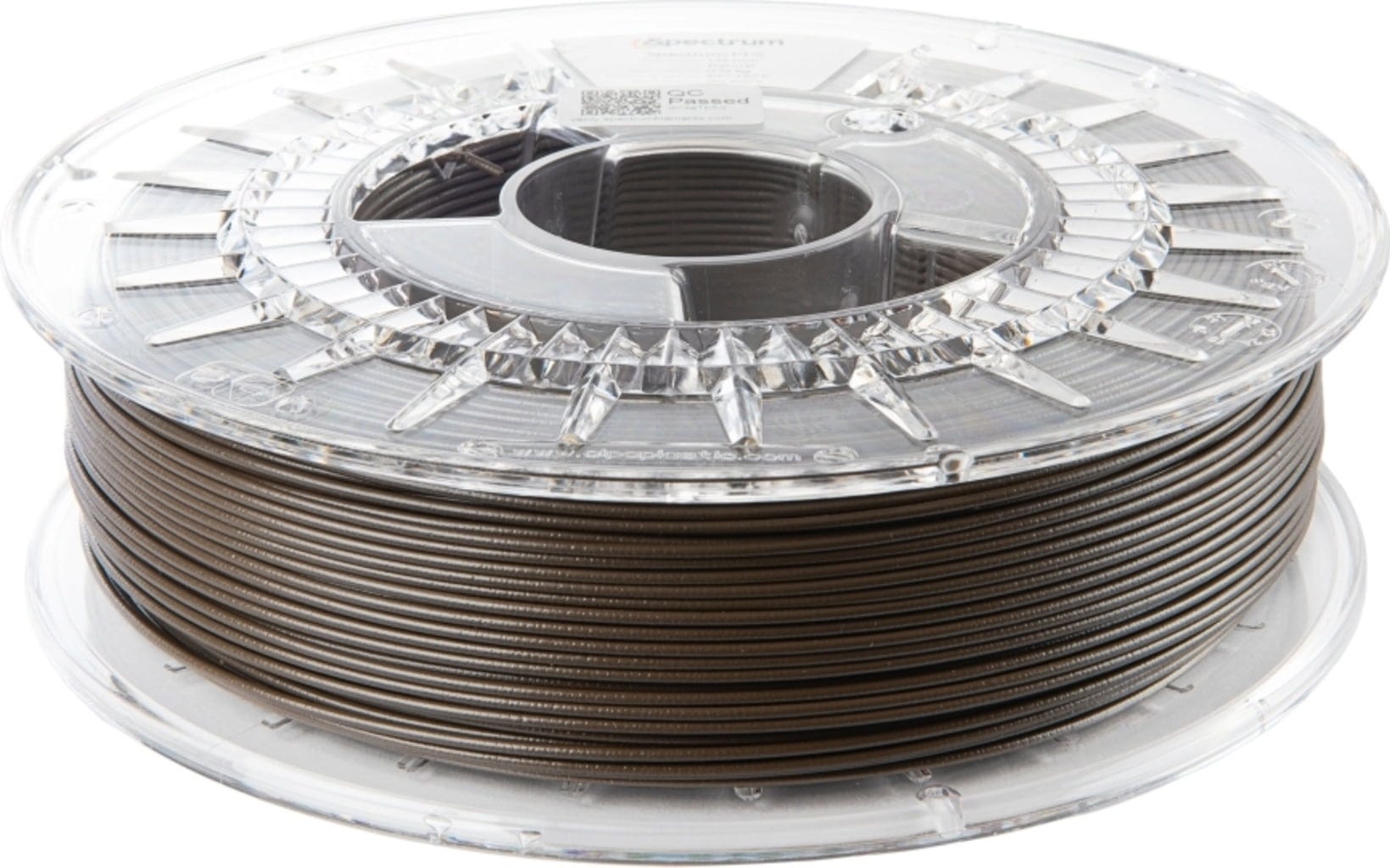

Spectrum PPS AM230
High-Performance Polyphenylene Sulfide | 230°C+ Thermal Stability | 0.75kg Industrial Grade
Spectrum PPS AM230 is a high-performance, semi-crystalline engineering filament designed for the most demanding technical applications. Often referred to as "Plastic Steel," PPS is world-renowned for its unparalleled resistance to solvents, acids, and bases, coupled with a staggering continuous service temperature.
With a heat deflection temperature (HDT) exceeding 230°C, PPS AM230 bridges the gap between traditional engineering plastics and metals. It is intrinsically flame-retardant (UL 94 V-0) and exhibits zero moisture absorption, making it the definitive choice for aerospace, automotive, and industrial chemical processing parts that must maintain absolute dimensional integrity in hellish environments.
To unlock the full potential of PPS AM230, your 3D printer must be equipped for high-temperature operation. A nozzle temperature of 300°C - 330°C and a heated chamber (min. 80°C) are strictly required to ensure proper crystallization and interlayer bonding. PPS is a technical material for users who demand the highest possible structural performance.
🌡️ Extreme Heat Resistance
HDT of 230°C+ allows for functional use in automotive engine bays, steam sterilization, and industrial ovens.
🧪 Universal Chemical Immunity
Practically insoluble in all known solvents below 200°C. Resists fuels, oils, and highly corrosive chemicals.
🔥 Natural Flame Retardancy
Intrinsic UL 94 V-0 rating without the use of halogenated additives, ensuring low smoke toxicity and high safety.
📏 Absolute Stability
Zero moisture absorption means parts will not swell or degrade even after prolonged immersion in water or fluids.
- Semiconductor wafer handling and processing tools
- Oil and gas exploration downhole components
- Automotive fuel injection systems and pump bodies
- Aerospace interior and structural safety components
- Chemical processing valves and pipe fittings
- Laboratory equipment requiring repeated sterilization
| Material Identity & Resilience Portfolio | |
|---|---|
| Producer / Series | Spectrum Filaments / PPS AM230 |
| Material Type | Polyphenylene Sulfide (Natural) |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color | Natural (Opaque Amber/Beige) |
| Net Weight | 0.75 kg |
| Heat Deflection Temp (HDT) | 230°C+ |
| EAN / SKU | 5903318301327 / 80131 |
| Nozzle Temperature | 300 - 330°C |
| Heated Bed Temperature | 100 - 120°C |
| Heated Chamber Temperature | 80 - 120°C (Required) |
| Nozzle Type | Hardened Steel / Ruby (Recommended) |
| Print Speed | 15 - 40 mm/s |
| Cooling Fan | 0% (Disabled) |
| Net Weight [kg] | Spool Type | Protection | Crystallinity |
|---|---|---|---|
| 0.75 | Standard Industrial Spool | Vacuum Sealed + Desiccant | Semi-Crystalline High-Flow |
Prepare your industrial workflow with official Spectrum technical data:
* Expert Optimization: To achieve maximum mechanical strength and temperature resistance, printed PPS parts should undergo a post-crystallization annealing process. Heating the part slowly to 150°C and maintaining it for 2-4 hours will significantly enhance its structural properties.
