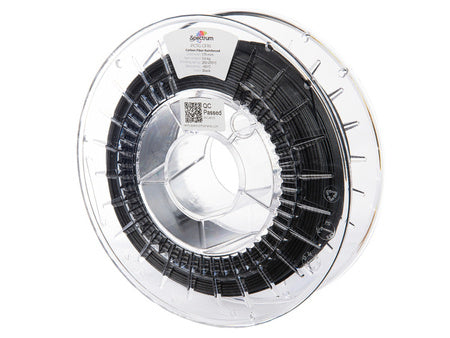

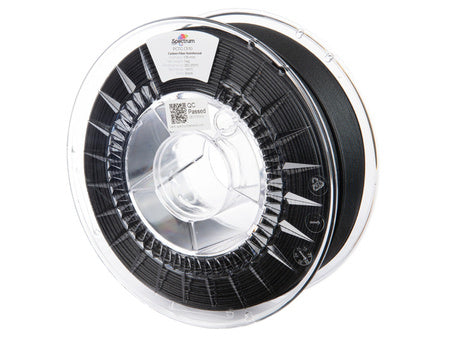

Spectrum PCTG CF10
Carbon Fiber Reinforced PCTG | Ultra-Rigidity | High Impact Strength | 0.5-1.0kg
Spectrum PCTG CF10 is a professional-grade composite filament that combines the superior chemical and impact resistance of PCTG with 10% high-modulus carbon fibers. This integration creates a material that is significantly stiffer and more dimensionally stable than standard filaments, while effectively reducing the weight of printed components.
The result is a material that offers an exceptional matte black finish that virtually disappears layer lines, making it perfect for end-use parts, aesthetic prototypes, and structural components that demand a premium industrial look without the extreme printing difficulty of PC or Nylon composites.
PCTG CF10 solves the "brittleness" problem typically associated with Carbon Fiber filaments. While the CF reinforcement provides immense rigidity, the PCTG base ensures outstanding interlayer adhesion and high impact toughness. It is the ultimate choice for parts that need to be both stiff and durable.
💪 High Structural Rigidity
Carbon fiber integration increases the modulus of elasticity, providing a significant boost in part stiffness.
🔨 High Impact Strength
Unlike other CF-filled materials, PCTG CF10 maintains the core resilience needed to absorb energy without fracturing.
📐 Zero Warping & Shrinkage
The fiber scaffolding minimizes thermal stress, allowing for the easy printing of large-scale industrial parts.
🏁 Professional Matte Finish
Achieve a sleek, carbon-black surface that hides layer lines and provides a high-end, non-reflective aesthetic.
- Structural UAV components and drone frames
- Custom automotive brackets and intake manifolds
- End-use mechanical jigs, fixtures, and tools
- High-load sporting equipment components
- Aerospace interior prototypes and structural parts
- Protective housings for high-impact industrial electronics
| Material Identity & Mechanical Profile | |
|---|---|
| Producer / Series | Spectrum Filaments / Industrial CF |
| Material Type | PCTG + 10% Carbon Fiber |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color Name | Carbon Black (Deep Matte) |
| Heat Deflection Temp (HDT) | ~ 78°C - 80°C |
| Net Weight | 0.5 kg-1.00 kg (Industrial Spool) |
| EAN / SKU | 5903116681399 / 80130 |
| Nozzle Temperature | 250 - 270°C |
| Heated Bed Temperature | 70 - 90°C |
| Nozzle Type | Hardened Steel (Mandatory for abrasion) |
| Print Speed | 30 - 60 mm/s |
| Cooling Fan Speed | 0 - 20% (Low for best strength) |
| Bed Adhesive | Magigoo / PEI / BuildTak |
| Diameter Accuracy | Spool Design | Protection | Compliance |
|---|---|---|---|
| ±0.05 mm (2-Axis) | Premium Rigid Industrial Spool | Vacuum Sealed + Desiccant | Individual QR Code Quality Report |
Access critical technical data for structural engineering:
* Hardware Note: Carbon fiber is highly abrasive. To maintain printing precision, a hardened steel or ruby-tipped nozzle is required. Standard brass nozzles will suffer rapid wear when printing this material.
