Spectrum Filament PEBA
High-Performance Polyether Block Amide | Ultra-Lightweight
Spectrum PEBA is an elite thermoplastic elastomer (TPE) belonging to the Polyether Block Amide family. Known for its legendary use in high-end athletic footwear and aerospace components, PEBA offers a unique combination of Nylon-grade strength and high-performance flexibility.
This material is engineered for applications that demand extreme energy return, low-temperature resilience, and significant weight savings. Unlike standard TPU, PEBA maintains its mechanical properties across a vast temperature range and features a much lower density, allowing for the creation of lightweight, high-speed functional parts.
- Weight: PEBA is ~20% lighter than TPU (Density 1.01 vs 1.21 g/cm³).
- Recovery: Much higher energy return (rebound) with minimal hysteresis loss.
- Cold Resistance: Stays flexible at -40°C where TPU becomes brittle.
- Toughness: Better fatigue resistance for parts undergoing millions of flex cycles.
🏃 Dynamic Energy Rebound
Outstanding elastic recovery makes it ideal for sports equipment and vibration-damping industrial components.
❄️ Extreme Cold Resilience
Maintains consistent flexibility and impact resistance even in Arctic conditions (down to -40°C).
🧪 Industrial Chemical Defense
Excellent resistance to fuels, automotive oils, grease, and a wide variety of industrial chemicals.
📏 Precision Printability
Optimized Shore 90A hardness ensures easier feeding in direct-drive extruders compared to ultra-soft filaments.
- High-performance athletic shoe components
- Ski boot liners and winter sports gear
- Automotive gaskets and flexible ducts
- Vibration isolators and shock absorbers
- Medical device prototypes (non-implantable)
- Aerospace lightweight structural seals
| Material Identity & Characteristics | |
|---|---|
| Producer / Series | Spectrum Filaments / PEBA |
| Material Type | Polyether Block Amide (TPE-BA) |
| Filament Diameter | 1.75 mm ± 0.05 mm |

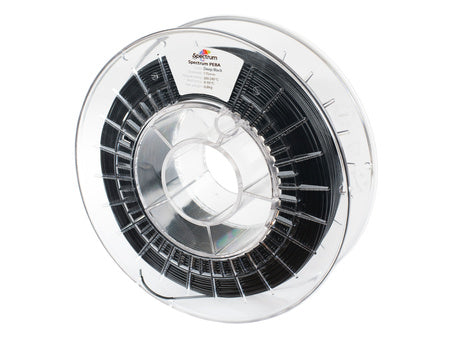

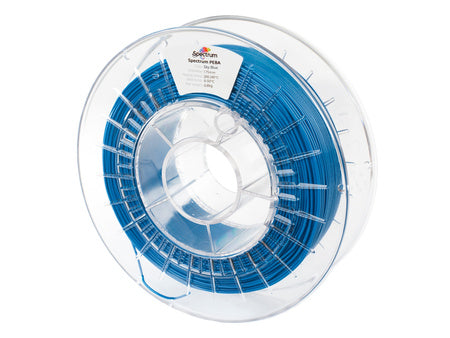

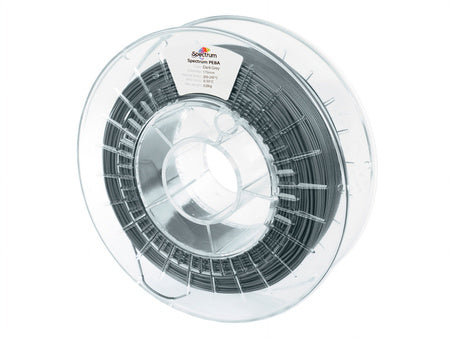

| Color | Dark Grey / SKY BLUE / DEEP BLACK / PURE RED / FOREST GREEN / PURE WHITE |
| Net Weight | 0.8 kg |
| Density | 1.01 g/cm³ |
| Shore Hardness | ~90A |
| EAN / SKU | 5903318302195 / 80167 |
| Nozzle Temperature | 225 - 245°C |
| Heated Bed Temperature | 30 - 60°C |
| Print Speed | 15 - 40 mm/s (Start slow for elastomers) |
| Drying Recommended | Yes (60°C for 4-6 hours) - Essential for finish |
| Extruder Type | Direct Drive recommended (Bowden possible with slow speed) |
| Retraction | Minimal or Off (to prevent filament tangling) |
| Net Weight [kg] | Spool Type | Moisture Protection | Quality Traceability |
|---|---|---|---|
| 0.8 | Standard Round Spool | Vacuum Sealed + Desiccant | Full Batch Documentation |
Access the official technical documentation for Spectrum PEBA:
* Expert Tip: PEBA is a high-end technical material. To achieve the best layer adhesion and surface clarity, ensure the filament is perfectly dry. For Bowden extruders, reduce speed to 15mm/s and use a high-quality PTFE tube to minimize friction.
