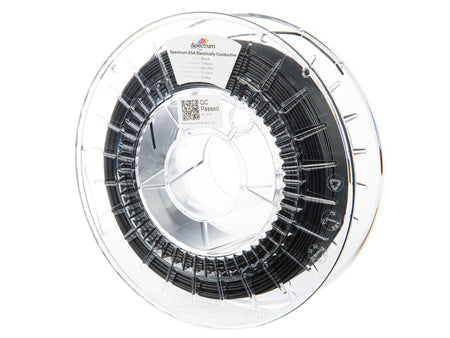

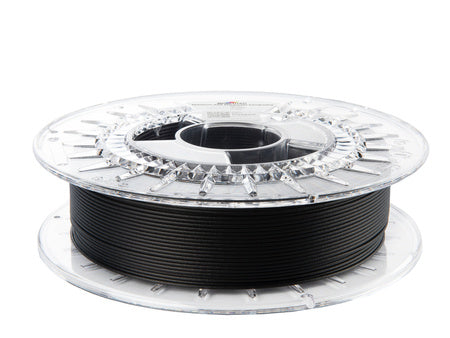

ASA Electrically Conductive
Electrostatic Dissipative | UV Resistant | Industrial Grade
Spectrum ASA Electrically Conductive is a specialized technical filament designed for the most demanding electronic and industrial applications. By integrating high-quality conductive carbon additives into an ASA (Acrylonitrile Styrene Acrylate) matrix, this material offers a reliable path for electrical dissipation while maintaining the mechanical excellence of engineering plastics.
This filament is the ultimate solution for components that require ESD (Electrostatic Discharge) protection. Unlike standard conductive filaments, our ASA base ensures that your parts can withstand harsh outdoor environments, providing permanent conductivity without the risk of UV degradation or embrittlement.
The volume resistivity of Spectrum ASA Conductive is engineered to fall within the range required for anti-static safety. This makes it indispensable for printing fuel system components, electronic sensor housings, and assembly tools used in explosive atmospheres (ATEX) where static sparks must be prevented at all costs.
🔌 Stable Resistivity
Reliable electrical conductivity through the entire printed part, ensuring consistent ESD performance.
☀️ UV & Weather Resistance
Superior to ABS, this ASA base allows for long-term outdoor use without color fading or structural loss.
🌡️ High Thermal Stability
Boasts a high heat deflection temperature (HDT), allowing parts to function in high-temperature industrial environments.
📐 Low Matte Finish
Produces professional, technical-looking parts with a deep matte black finish and exceptional dimensional accuracy.
- Electronic component housings & enclosures
- ESD-safe assembly jigs and manufacturing fixtures
- Automotive sensor mounts and fuel system parts
- ATEX-compliant tools for hazardous environments
- Electromagnetic interference (EMI) shielding prototypes
- Laboratory equipment requiring grounding paths
| Material Identity & Electrical Properties | |
|---|---|
| Producer / Series | Spectrum Filaments / Conductive Series |
| Material Type | ASA + Conductive Carbon Additives |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color Name | Black (Deep Matte) |
| Volume Resistivity | ~ 10^3 - 10^4 Ohm·cm (Direction Dependent) |
| Net Weight | 0.75 kg (Industrial Spool) |
| EAN / SKU | 5903318302324 / 80165 |
| Nozzle Temperature | 240 - 270°C |
| Heated Bed Temperature | 80 - 110°C |
| Chamber Temperature | Recommended (Passive or Active) |
| Print Speed | 30 - 70 mm/s |
| Cooling Fan Speed | 0 - 25% (Low for strength) |
| Nozzle Type | Hardened Steel Recommended (Abrasive) |
| Diameter Accuracy | Spool Design | Protection | Traceability |
|---|---|---|---|
| ±0.05 mm (2-Axis) | Premium Rigid Spool | Vacuum Sealed + Desiccant | Individual Spool Quality Report |
Essential for industrial certification and safety compliance:
* Engineer's Tip: Conductivity in 3D printed parts is anisotropic. For maximum conductivity along the Z-axis, consider increasing the flow rate slightly and using higher nozzle temperatures to improve interlayer fusion and carbon-to-carbon contact.
