Spectrum ASA-X CF10
10% Carbon Fiber Reinforced ASA | Ultimate Rigidity | High-Temp Stealth
Spectrum ASA-X CF10 is the definitive choice for professional 3D printing applications that demand the highest levels of stiffness, thermal resistance, and lightweighting. By reinforcing a high-performance ASA-X matrix with 10% carbon fibers, this filament provides unparalleled structural integrity while maintaining the legendary UV resistance of ASA.
This material is engineered to solve the common issues of large-scale industrial printing, offering extremely low shrinkage and a beautiful matte black finish. Whether you are printing functional automotive parts or aerospace drone frames, ASA-X CF10 ensures your parts remain dimensionally accurate under the most punishing conditions.
Compared to standard ASA, the CF10 variant increases tensile modulus significantly, allowing for thinner walls and lighter parts without sacrificing strength. The carbon fibers also improve the heat deflection temperature (HDT), making it suitable for environments where standard plastics would warp or soften.
🌑 Stealth Matte Aesthetics
The carbon fiber inclusion masks layer lines exceptionally well, delivering a high-end, professional matte black surface.
🛡️ Maximum UV Resistance
Unlike carbon-filled ABS, the ASA-X base provides permanent protection against UV radiation, making it perfect for long-term outdoor use.
🌡️ Exceptional Thermal Stability
Optimized for high-temperature applications, maintaining its shape and rigidity even in demanding heat environments.
📉 Zero Warping Technology
The ASA-X base is specifically modified for low shrinkage, enabling the successful printing of large, complex industrial geometries.
- Functional automotive parts (exterior mirror housings, scoops)
- High-stiffness drone frames and aerospace brackets
- Industrial manufacturing jigs, fixtures, and tools
- Outdoor electronic enclosures and sensor mounts
- Motorsports components requiring heat and impact resistance
- High-detail prototypes with an industrial stealth finish
| Material Identity & Mechanical Data | |
|---|---|
| Producer / Series | Spectrum Filaments / ASA-X CF10 |
| Material Type | ASA-X + 10% Carbon Fiber |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color | Carbon Black (Deep Matte) |
| Net Weight | 0.5 kg-1.00 kg (Large Professional Spool) |
| Density | 1.12 g/cm³ |
| EAN / SKU | 5903318300290 / 80038 |
| Nozzle Temperature | 240 - 270°C |
| Heated Bed Temperature | 80 - 100°C |
| Nozzle Type | Hardened Steel (Essential due to Carbon Fiber) |
| Nozzle Diameter | ≥ 0.40 mm recommended |
| Drying Recommended | Yes (80°C for 4 hours) |
| Enclosure | Recommended (Optimizes ASA-X interlayer bonding) |

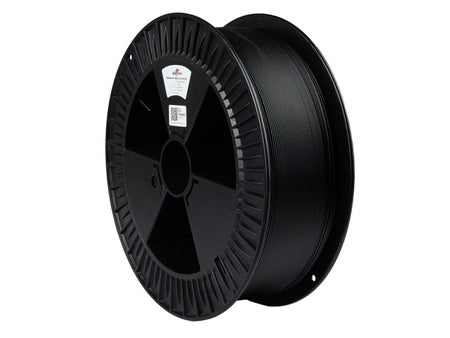

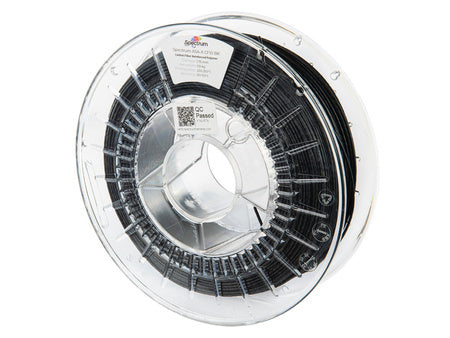

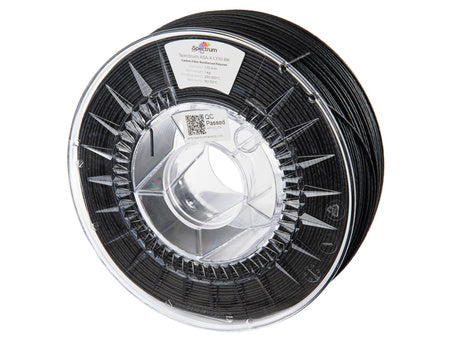

| Net Weight [kg] | Spool Type | Sealing Process | Quality Check |
|---|---|---|---|
| 0.5-1-2 | Standard Industrial Spool | Vacuum Sealed + Desiccant | Verified Batch Integrity |
Access the official documentation for Spectrum ASA-X CF10:
* Critical Hardware Advisory: Carbon fibers are abrasive. Use of a hardened steel nozzle is mandatory to prevent rapid diameter expansion of standard brass nozzles. Ensure proper ventilation during printing and keep filament in a dry box for the best surface results.
