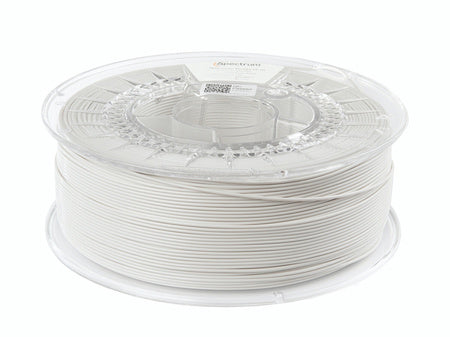

Spectrum Filament PC/ABS FR V0
Flame Retardant Engineering Alloy | 1.75mm Professional Grade
Spectrum PC/ABS FR V0 is a high-performance engineering thermoplastic blend that combines the exceptional mechanical properties of Polycarbonate (PC) with the high toughness and ease of processing of ABS.
Uncompromising on safety, this material is specifically formulated to meet the UL94-V0 flammability standard. It is designed for applications where fire safety and self-extinguishing properties are mandatory. With high heat resistance (Vicat 107°C) and excellent impact strength, it is the premier choice for functional components in electrical, automotive, and industrial sectors.
This filament complies with the UL94-V0 vertical burning test (for 1.5mm - 3.0mm thickness). It does not produce flaming drips and extinguishes itself within seconds after the flame source is removed, making it safe for electronics housings.
⚡ Electrical Insulation
Excellent dielectric properties make it ideal for isolating sensitive electronic components and high-voltage assemblies.
🌡️ High Thermal Stability
A Vicat softening temperature of 107°C ensures parts maintain structural integrity in high-heat environments.
🛠️ High Impact Strength
The PC/ABS alloy offers superior mechanical resistance to cracking and deformation compared to standard FR materials.
📐 Low Shrinkage
Optimized for dimensional accuracy, allowing for tight tolerances in complex electrical enclosures.
- Electrical housings and junction boxes
- Circuit breaker components and switches
- Automotive dashboard and interior parts
- Industrial control system enclosures
- Components for public transport (Rail/Bus)
- Safety-critical prototypes for appliances
| Material Identity & Characteristics | |
|---|---|
| Producer / Series | Spectrum Filaments / PC/ABS FR V0 |
| Material Type | Polycarbonate / ABS Alloy (Halogen-Free FR) |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color | White (Pure Industrial White) / black |
| Net Weight | 1.0 kg |
| Vicat Softening Temp | 107°C |
| Flammability Class | UL94-V0 (Internal tested) |
| EAN / SKU | 5903318301716 / 80119 |
| Nozzle Temperature | 240 - 270°C |
| Heated Bed Temperature | 80 - 100°C |
| Chamber Temperature | Actively heated chamber recommended (50°C+) |
| Drying Recommended | Yes (80°C for 4-6 hours) - Essential for PC/ABS |
| Bed Adhesion | Magigoo PC or specialized adhesives on PEI |
| Spool Weight [kg] | Spool Type | Moisture Protection | Quality Control |
|---|---|---|---|
| 1.0 | Standard Round Spool | Vacuum Sealed + Desiccant | Full Batch Traceability |
Access the official technical documentation for Spectrum PC/ABS FR V0:
* Note: PC/ABS is hygroscopic. To ensure the best surface finish and maintain flame retardant properties, always dry the filament before printing if exposed for more than 4 hours. Use of a ventilated enclosure is recommended.
